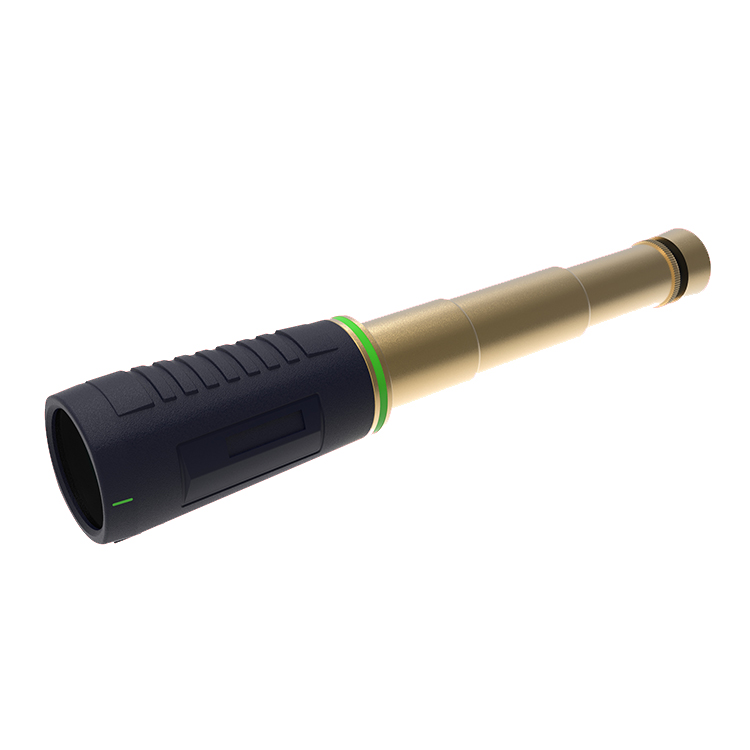

KD07H-17x35 拉伸式调焦，复古航海单筒望远镜
订购询价
产品描述：
| MODELS SPEC. | 17x35 | ||||
| 01 | POWER | 倍 率 | 有效倍数 | 17x | |
| 02 | OBJ.LENS DIA. | 物镜直径 | mm | 有效直径 | 35mm |
| 03 | TYPE OF PRISM | 棱镜类别 | Type / Material | 类别及材料 | BK7 |
| 04 | PRISM COATING | 棱镜镀膜 | Yes / No | 是或否 | No |
| 05 | NUMBER OF LENS | 透镜组数 | Pieces & Groups | 共几片及分几组 | 5pieces3groups |
| 06 | LENS COATING | 透镜镀膜 | CL/FC/BMC/FBMC | 部分/全部/多层膜 | CL |
| 07 | FOCUS SYSTEM | 调焦系统 | Cent. / Ind. / Fix | 中调/分调/定焦 | Puch Pull & Ind. |
| 08 | FOCUSING LENS | 调焦透镜 | Eye. / Obj. / Int. | 目镜/物镜/内调 | Eye. |
| 09 | EXIT PUPIL DIAMETER | 出瞳直径 | mm | Ø2.1 | |
| 10 | EXIT PUPIL DIST. | 出瞳距离 | mm | 15 | |
| 11 | FIELD OF VIEW | 视 场 | ANGLE | 角度 | 2.22° |
| 12 | Ft / 1,000Yds | 尺 | 116 ft | ||
| 13 | M / 1,000M | 米 | 38.8m | ||
| 14 | MIN.FOCAL LENGTH | 最近焦距 | M / Ft. | 米 / 尺 | 20m/60ft |
| 15 | RELATIVE BRIGHTNESS | 相对亮度 | 4.24 | ||
| 16 | TWLIGHT INDEX | 黄昏指数 | 24.39 | ||
| 17 | RESOLUTION | 分辨率 | ≤6" | ||
| 18 | DIOPTER SYSTEM | 视差补偿 | 左/右/目镜/物镜 | eyepiece | |
| 19 | DIOPTER COMP. | 视差度数 | ±Optic.Degree | ±6 | |
| 20 | WEATHER PROOF | 全 天 候 | Yes / No | yes | |
| 21 | WATER PROOF | 防水结构 | Depth / Time | 深度及时间 | |
| 22 | NITROGEN FILLED | 氮气充存 | Yes / No | 有或无 | No |
| 23 | EYECUPS SYSTEM | 目罩结构 | Rubber / Pop-up / Twist-up | 可反接橡胶/拉出/旋出 | Twist-up |
| 24 | POUCH | 软 包 | Yes / No-Mat'l. | 有/无&材料 | yes |
| 25 | STRAP | 手 带 | Yes / No-Mat'l. | 有/无&材料 | |
| 26 | CLEANING CLOTH | 清 洁 布 | Yes / No | 有&无 | yes |
| 27 | SILICA GEL | 干 燥 剂 | Yes / No | 有&无 | yes |
| 28 | UNIT DIAMENSION | 产品尺寸 | mm | 190mm≤ L ≤370mm | |
| 29 | UNIT WEIGHT | 产品重量 | gm / oz. | ||
| 30 | GIFT BOX SIZE | 彩盒尺寸 | mm | ||
| 31 | PIECES PER SHIPPING CARTON | 装箱件数 | Pieces | 20pcs/ctn | |
| 32 | SHIPPING CARTON SIZE | 装箱尺寸 | Size | cm | |
| 33 | GROSS WEIGHT | 毛 重 | Kg. / Pound | ||
| 34 | NET WEIGHT | 净 重 | Kg. / Pound | ||
